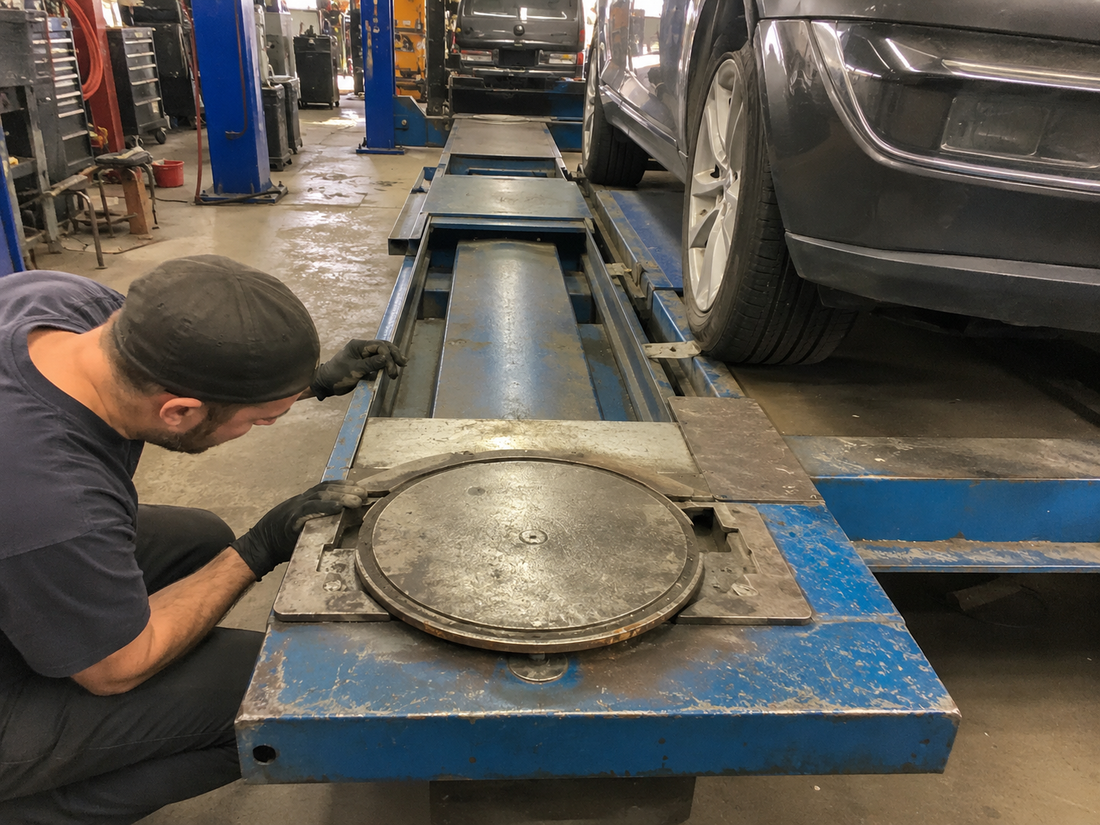

Alignment Rack Turn Plates Sticking? Common Causes and Service Tips

Alignment turn plates are designed to let the front wheels move freely while a technician measures and adjusts steering and suspension angles. When the plates begin sticking, dragging, or refusing to move smoothly, alignment readings can become harder to trust and the job can take longer than it should.

East Valley Technical Services provides alignment equipment and automotive shop equipment service throughout Southern California.

Signs Your Turn Plates May Need Attention

Common symptoms include turn plates that are difficult to move by hand, plates that do not return smoothly, one side moving differently from the other, excessive resistance during steering adjustments, unusual grinding or scraping noises, or alignment readings that seem inconsistent.

If technicians are fighting the plates during an alignment, the rack should be inspected.

1. Dirt and Debris Under the Plates

Brake dust, dirt, rust, small stones, grease, and shop debris can collect underneath the turn plates.

Even a small amount of buildup can increase resistance and keep the plate from moving freely.

Cleaning the plate assembly and the area underneath it may restore smooth movement if there is no mechanical damage.

2. Worn Bearings or Rollers

Depending on the rack design, turn plates may use bearings, rollers, balls, or sliding surfaces to allow movement.

These components can wear, flatten, corrode, or become damaged over time.

Worn components may cause the plate to bind, drag, or move unevenly.

3. Rust or Corrosion

Moisture, cleaning chemicals, and normal shop conditions can lead to corrosion around the turn plate assembly.

Rust can prevent the plate from sliding or rotating smoothly and may eventually damage the internal moving surfaces.

Early inspection can help prevent a minor sticking problem from turning into a larger repair.

4. Bent or Damaged Turn Plate

A plate can become bent or damaged from impact, improper vehicle positioning, heavy use, or equipment being dropped on it.

Even slight deformation may cause the plate to rub against the surrounding frame.

If the plate does not sit flat or has visible damage, it should be inspected before continued use.

5. Improper Lock Pin Operation

Turn plates are often locked while the vehicle is driven onto the rack and then released before the alignment begins.

If a lock pin is bent, damaged, partially engaged, or not fully removed, the plate may not move correctly.

Technicians should confirm that the lock mechanism is completely disengaged before measurements are taken.

6. Lack of Proper Lubrication

Some turn plate assemblies require specific cleaning and lubrication procedures.

Too little lubrication may increase friction, while using the wrong lubricant can attract dirt and make the problem worse.

The manufacturer’s maintenance recommendations should be followed for the specific rack.

7. Rack Level or Installation Problems

The turn plates are part of the complete alignment rack.

If the rack is not level, has shifted, or has worn structural components, one plate may carry more load than the other.

This can cause uneven movement and may also affect alignment measurements.

Why Smooth Turn Plate Movement Matters

The front wheels need to move naturally during an alignment.

If the plates bind or resist movement, suspension components can remain loaded and the machine may not see the vehicle in its natural position.

That can contribute to inconsistent readings, repeated adjustments, longer alignment times, and customer comebacks.

Alignment Equipment Service in Southern California

East Valley Technical Services provides alignment equipment diagnostics and service throughout Orange County, Los Angeles County, Riverside County, San Bernardino County, and surrounding areas.

We help shops with turn plate problems, alignment rack issues, target and camera problems, calibration support, lift and rack concerns, and general automotive shop equipment service.

We work with independent repair shops, tire shops, dealerships, schools, fleets, and automotive service centers.

Schedule Alignment Equipment Service

If your alignment rack turn plates are sticking, dragging, damaged, or no longer moving smoothly, EVT can help.

Contact East Valley Technical Services to schedule a diagnostic or service call.

We help Southern California shops reduce downtime and keep their alignment equipment working accurately.
