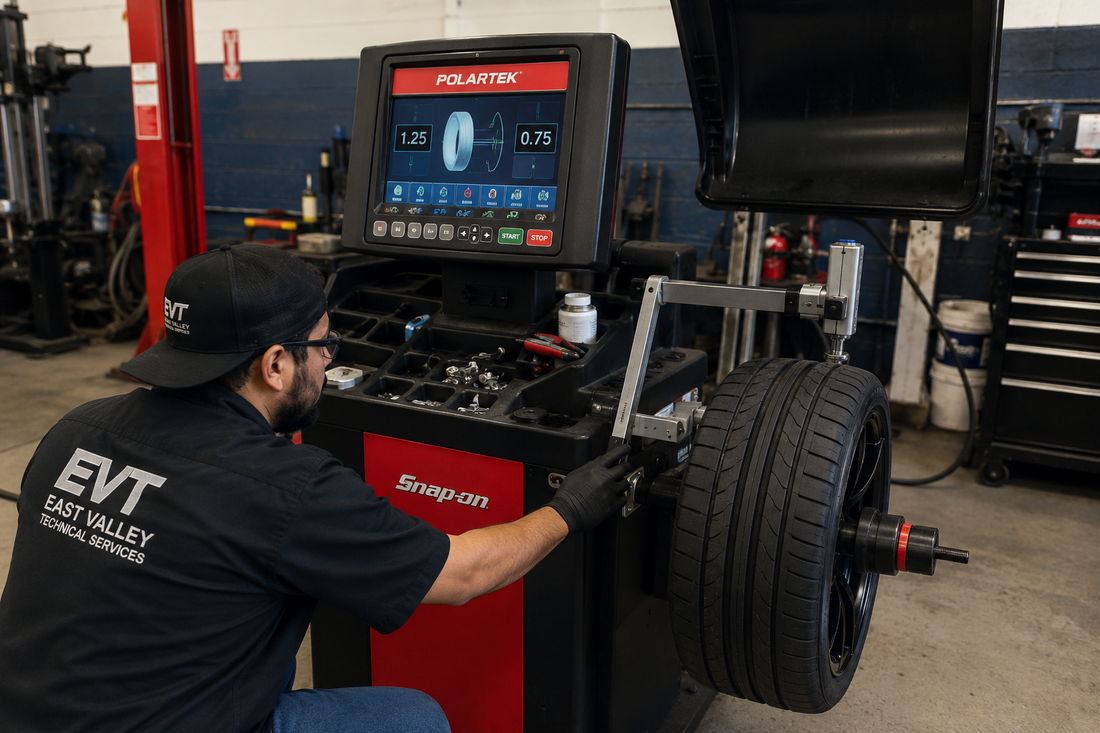

Wheel Balancer Arm Not Measuring Correctly? Common Causes and Service Tips

A wheel balancer can power on and spin normally but still give bad results if the measuring arm is not reading correctly.

The arm may fail to register wheel dimensions, show the wrong distance or diameter, stick in place, or give measurements that change from one use to the next. When that happens, the issue may involve calibration, sensors, wiring, mechanical wear, or the arm itself.

East Valley Technical Services provides wheel balancer diagnostics and automotive shop equipment service throughout Southern California.

Signs the Measuring Arm May Have a Problem

Common symptoms include the arm not registering when it is moved, incorrect wheel diameter readings, incorrect distance readings, measurements that jump or change unexpectedly, the arm sticking or not returning smoothly, repeated calibration problems, or technicians having to enter measurements manually.

If the machine is consistently misreading wheel dimensions, the measuring system should be inspected.

1. Arm Calibration Is Off

The measuring arm relies on calibration to translate its movement into accurate wheel dimensions.

If the machine has been moved, bumped, serviced, or used heavily, the arm calibration can drift. The machine may still operate, but the measurements may no longer match the actual wheel.

A calibration check is often one of the first steps when the readings are consistently wrong.

2. Worn or Damaged Potentiometer or Sensor

Many balancers use an internal sensor to track the position of the measuring arm.

As the sensor wears, readings may become unstable, intermittent, or completely inaccurate.

A failing sensor may work normally in one position and give incorrect values in another.

3. Loose or Damaged Wiring

The arm sensor communicates with the machine through wiring and electrical connectors.

Loose plugs, damaged wires, corrosion, or pinched wiring can interrupt the signal and cause erratic measurements.

Intermittent wiring problems are especially common when the arm works sometimes but not others.

4. Mechanical Binding

The arm should move smoothly through its full range.

Dirt, bent components, worn bushings, damaged pivots, or internal binding can affect how the arm moves and where the sensor reads its position.

If the arm feels rough, loose, or difficult to move, the mechanical assembly should be inspected.

5. Bent or Damaged Measuring Arm

A measuring arm can be damaged by impact, improper use, or being forced beyond its normal range.

Even a slight bend can affect the geometry of the measurement and create inaccurate readings.

The arm should line up correctly and move freely without excessive play.

6. Encoder or Position Sensor Problems

Some systems use encoders or other position sensing components instead of a simple potentiometer.

If the sensor loses position, becomes dirty, or starts failing, the machine may display unstable or incorrect dimensions.

A technician can compare the actual arm position with the values the machine is receiving.

7. Software or Control Board Issues

If the arm and sensor are working correctly but the machine still displays bad measurements, the issue may involve software, calibration data, or the control board.

A reset, calibration procedure, or electronic diagnostic may be needed before parts are replaced.

Why Accurate Arm Measurements Matter

The balancer uses the measured wheel dimensions to calculate where and how much weight should be applied.

If those measurements are wrong, the machine may recommend incorrect weight placement or require repeated spin cycles.

That can lead to longer balancing time, wasted wheel weights, vibration complaints, technician frustration, and customer comebacks.

Wheel Balancer Service in Southern California

East Valley Technical Services provides wheel balancer diagnostics and service throughout Orange County, Los Angeles County, Riverside County, San Bernardino County, and surrounding areas.

Our services include measuring arm diagnostics, calibration support, sensor and wiring troubleshooting, shaft and mounting inspection, electrical checks, and general wheel balancer repair.

We work with tire shops, repair facilities, dealerships, schools, fleets, and automotive service centers.

Schedule Wheel Balancer Service

If your wheel balancer measuring arm is not reading correctly, sticking, or giving inconsistent measurements, EVT can help.

Contact East Valley Technical Services to schedule a diagnostic or service call.

We help Southern California shops reduce downtime and keep their equipment working accurately.
