Wheel Balancer Won’t Start With the Hood Down? The Hood Switch May Be the Problem
Share
A wheel balancer can appear perfectly normal. The display is on, the controls respond, and the wheel is mounted correctly, but the machine refuses to begin the spin cycle when the hood is lowered.
One possible cause is the hood safety switch or interlock system.
The hood switch is designed to confirm that the protective hood is in the proper position before the balancer begins spinning. If the switch is damaged, out of adjustment, or not communicating correctly with the machine, the balancer may prevent the cycle from starting.
East Valley Technical Services provides wheel balancer diagnostics and automotive shop equipment service throughout Southern California.
Signs the Hood Switch May Be Causing the Problem
Common symptoms include:
The display powers on normally, but the machine will not spin.
Lowering the hood does not start the cycle.
The balancer says the hood is open when it is closed.
The machine starts only if the hood is moved or held in a certain position.
The problem is intermittent.
The hood feels loose or does not line up correctly.
The machine recently had the hood removed or adjusted.
A switch related error appears on the display.
The machine starts from the control panel but not through the normal hood start function.
If the machine behaves differently depending on the position of the hood, the safety interlock system should be inspected.

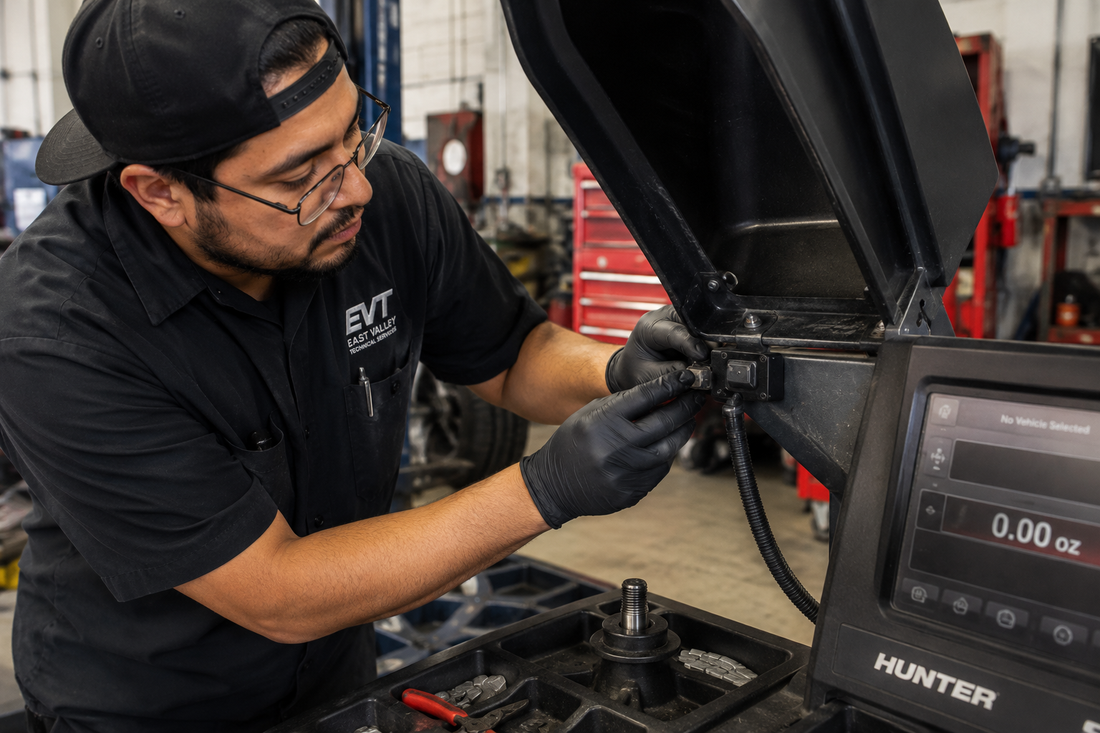

- Hood Switch Out of Adjustment
Sometimes the switch itself is working, but the hood is no longer contacting it correctly.
Normal use can cause brackets, hinges, or switch mounting points to shift slightly. If the switch does not fully activate when the hood closes, the machine may continue to think the hood is open.
The switch and hood position may need adjustment.
- Damaged Hood Switch
The switch is activated repeatedly throughout the day.
Over time, internal contacts can wear, the housing can crack, or the actuator can become damaged.
A failed switch may work intermittently before stopping completely.
- Loose or Damaged Wiring
The problem may not be the switch itself.
Loose connectors, damaged wires, pinched wiring, corrosion, or broken conductors can interrupt the signal between the hood switch and the control system.
Intermittent wiring faults can be especially frustrating because the machine may work normally one moment and refuse to start the next.
- Hood Hinge or Alignment Problems
A bent hood frame, worn hinge, loose mounting hardware, or damaged hood assembly may prevent the switch from being activated consistently.
If the technician has to push, pull, or reposition the hood to start the machine, the mechanical alignment should be checked.
- Control Board or Input Problem
The hood switch sends a signal to the balancer’s electronics.
If the switch and wiring are functioning properly but the machine still does not recognize the hood position, the issue may involve the control board or another electronic input.
A proper diagnostic can determine whether the machine is actually receiving the switch signal.
- Incorrect Machine Settings
Some wheel balancers allow technicians to change whether lowering the hood automatically starts the spin cycle.
If settings were changed after service, software updates, or setup changes, the machine may not behave the way technicians expect.
The operating settings should be confirmed before parts are replaced.
Do Not Bypass the Hood Safety Switch
A failed hood switch can be annoying, especially when the rest of the machine appears to work.
However, the safety interlock should not be permanently bypassed just to keep the balancer operating.
The protective hood is designed to help contain wheel weights or debris during the spin cycle. The correct repair is to diagnose why the machine is not recognizing the hood position and restore the safety system to proper operation.
Other Reasons a Wheel Balancer May Not Spin
If the hood switch is working correctly, the issue may involve:
Power supply problems.
Motor or drive system failure.
Control board problems.
Shaft or mechanical binding.
Start switch problems.
Internal wiring.
Sensors or encoders.
Machine error conditions.
A diagnostic can help avoid replacing parts unnecessarily.
