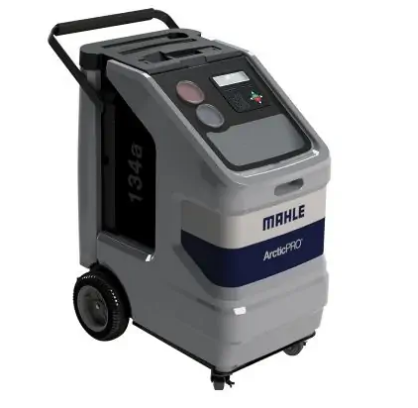

ArcticPRO Refrigerant Handling System

Features and Benefits

• ArcticPRO for Refrigerant R134a
• Recover, Recycle and Charge R134a systems
• Quicker service times
• Premium high-flow capacity solenoids
• 2 Year Parts and Labor Warranty

ArcticPRO equipment from MAHLE offers a range of choices in

A/C service equipment. All of our ArcticPRO models offer superior productivity, outstanding system performance and functionality. And when you select an ArcticPRO machine from MAHLE, you are getting the added value of an array of customer care solutions including a service network in the U.S., machine introduction and training. That is why our customers are going PROfessional with our equipment.

ArcticPRO technology gives your shop:

• Superior system performance
• Quicker service times
• High service accuracy
• Guaranteed customer satisfaction
• Customization for your exact needs
• Maximum uptime, less maintenance and fast service support
• SAE J 2788 certified performance and accuracy
• Designed for servicing hybrid vehicles
• Interior—LH side KWIK-CHANGE “Block” Manifold
• Assembly Patented design for ease of repair, plug and play
• Easy to use control panel with large face pressure gauges

Distinguishing Features

Industrial-duty cooling fan

Shock-resistant cylinder mounting

• Industrial-strength weight scale
• Premium high-flow capacity solenoids
• Low-side combination filter—includes full capacity alert
• Suction accumulator
• Oil separator

Specifications

• Certifications J 2788, J 2099, UL1963
• Charge Performance +/- 0.5 oz. at 70° to 75° F (+/- 15g at 21° to 24° C)
• Charging Cylinder 30 lb. (13.6 kg) DOT Compressor
• 3/8HP – 0.279kW, pressure protected, balanced start-up, oiled, hermetically sealed
• Condenser Fan 218CFM Industrial-duty
• Dimensions (H x W x D) 40 in x 23 in x 33 in (101.6 cm x 58 cm x 84 cm)
• Filter-Drier Capacity 150 lb. (75kg), spin-on type
• Hoses 9 ft. (3 m)
• Languages English, French, Spanish
• Operating Ranges 50° - 122°F (10°-50°C)
• Power Source 120 VAC - 60 HZ - 12 AMP
• Recycle Performance 95% at 70 to 75° F (21 to 24°C) within 30 minutes
• Scale Accuracy (+/- 0.03 oz.)(+/- 1 gram)
• Vacuum Pump 42 L/min (1.5 CFM) dual stage
• Warranty 2 Years – parts and labor
• Weight 220 lbs (99.8 kg
